Amchitka & Tanaga Passes ISRA

15/68

Amchitka & Tanaga Passes ISRA

Amchitka & Tanaga Passes

Summary

Amchitka & Tanaga Passes is located in Alaskan waters of the United States of America. It includes Amchitka Pass, Tanaga Pass, and multiple islands of the Andreanof Islands group, in the western part of the Aleutian Archipelago. The area is characterised by sandy and rocky substrates and strong eddy activity that promotes primary productivity. Within this area there are: range-restricted species (Butterfly Skate Bathyraja mariposa); and reproductive areas (Mud Skate Bathyraja taranetzi).

Amchitka & Tanaga Passes

Amchitka & Tanaga Passes

DESCRIPTION OF HABITAT

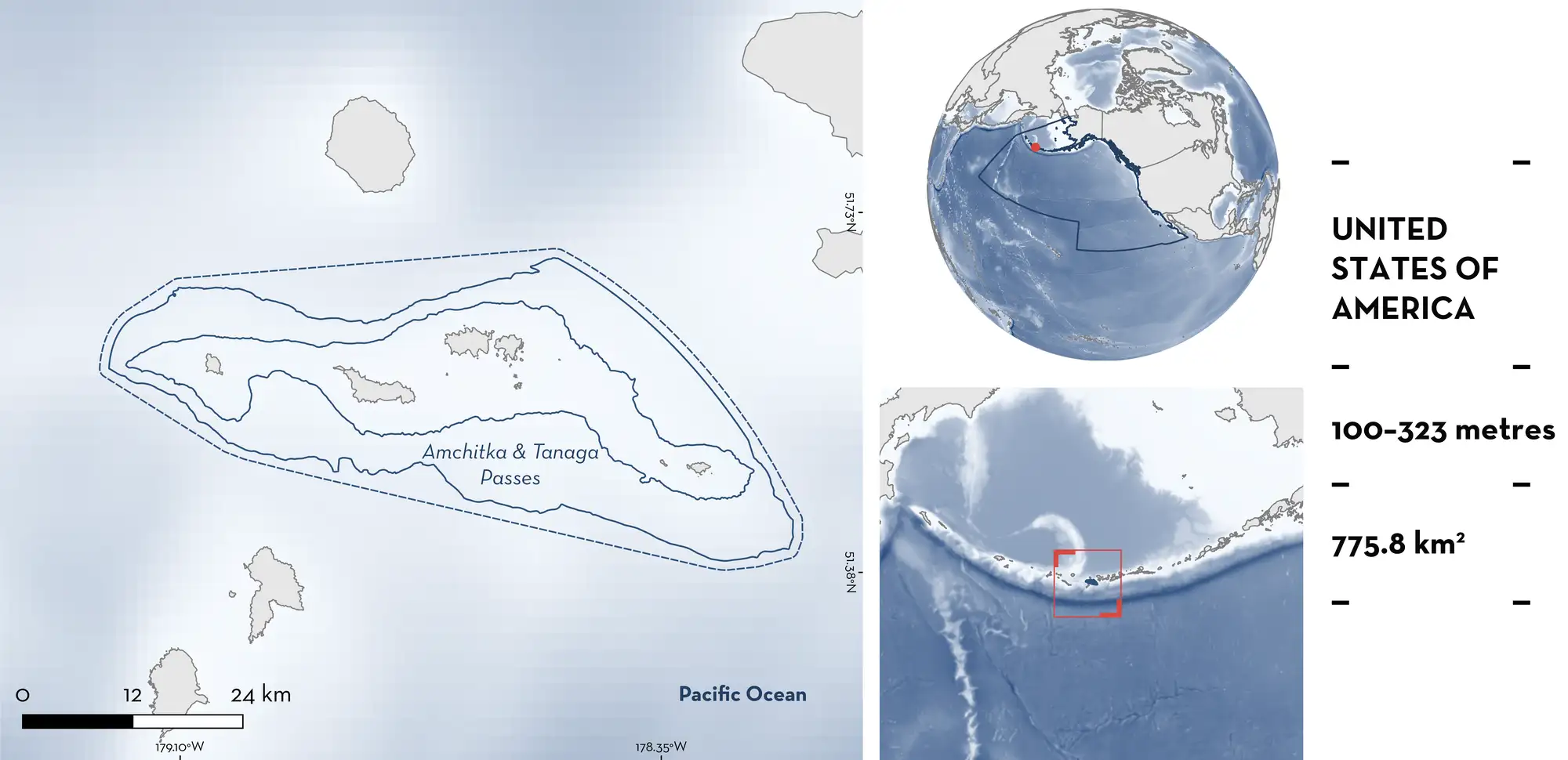

Amchitka & Tanaga Passes is located in Alaskan waters of the United States of America. It extends from Amchitka Pass in the west to Tanaga Pass in the east and across multiple islands of the Andreanof Islands group, in the central part of the Aleutian Archipelago. Amchitka Pass is one of the largest passes in the region and, along with Tanaga Pass, separates the Aleutian Trench (Pacific Ocean) and the Bering Sea (Hunt & Stabeno 2005; Khudyakova et al. 2025). The area is characterised by sandy and rocky substrates with sponge communities (Rooper et al. 2014; NOAA-AFSC 2026).

This area is influenced by the Alaska Stream, an intense boundary current flowing westward along the shelf break and the Aleutian Trench (Budyansky et al. 2022). This current enters the Bering Sea through the deepest straits of the Aleutian Archipelago, including Near Strait (Khudyakova et al. 2025). It has strong eddy activity that transports relatively warm, salty, and nutrient-rich waters promoting primary production and defining the water flow through all the straits in the Aleutian Islands (Rogachev & Shlyk 2018; Mordy et al. 2023). Bottom water temperature ranges ~3.5–4°C (NOAA-AFSC 2026)

This Important Shark and Ray Area is benthic, subsurface, and is delineated from 100–323 m based on the depth range of Qualifying Species in the area.

CRITERION B

RANGE RESTRICTED

This area holds the regular presence of Butterfly Skate as a resident range-restricted species. This species has been regularly recorded during trawl surveys conducted in the area for several decades. Between 1982–2025, the Alaska Fisheries Science Center (AFSC) – National Oceanic and Atmospheric Administration (NOAA) conducted trawl surveys during late boreal spring and summer in the Bering Sea, the Aleutian Islands, and the Gulf of Alaska (NOAA-AFSC 2026). Temporal coverage of the surveys varies by region, with most conducted annually (e.g., continental shelf surveys in the Bering Sea), or biennially (e.g., Gulf of Alaska) since 1999 (Hoff 2016; Siple et al. 2024; Markowitz et al. 2025; Dowlin et al. 2026). The continental slope survey in the Bering Sea stopped in 2016 (Markowitz et al. 2025). Surveys were conducted at fixed stations or following a stratified random survey design and covering depths from 0–1,000 m divided into multiple depth strata across 300–500 stations per region. In general, otter trawls of ~25 m headrope and ~34 m footrope were used and tows lasted between 15–30 minutes at a speed of ~3 knots. Catch-per-unit-effort (CPUE) was estimated as the number of individuals/number of egg cases per square kilometre (no/km2) and the area swept (km2) as the linear distance towed, multiplied by the mean net width (Hoff 2016; Siple et al. 2024; Markowitz et al. 2025; Dowlin et al. 2026).

Between 2006–2024, the presence of Butterfly Skates was recorded in 117 tows during trawl surveys across the whole region. During this period, Butterfly Skates were recorded in 30 (8.3%) tows within this area in all biennial surveys (NOAA-AFSC 2026). The highest CPUE (mean = 111.5 individuals/km2; 36.9–535.4 individuals/km2) for Butterfly Skate in the whole region was reported from this area in relation to the whole region surveyed (mean CPUE outside the area = 66.6 individuals/km2; 33.8–484.4 individuals/km2). Skates are known to aggregate, with temporal changes in aggregations related to sex and life-stage segregations (Swain & Benoît 2006; Frisk 2010; Hoff 2010). Skate aggregations are usually related to high density areas where large catch quantities occur (Bizzarro et al. 2014). Individuals were caught mostly at depths between 100–323 m and bottom temperatures of 2.9–5.6°C (NOAA-AFSC 2026). This species only occurs in the Aleutian Islands Large Marine Ecosystem (LME).

CRITERION C

SUB-CRITERION C1 – REPRODUCTIVE AREAS

Amchitka & Tanaga Passes is an important reproductive area for one ray species.

Between 1982–2025, AFSC conducted trawl surveys during late spring and summer in the Bering Sea, the Aleutian Islands, and the Gulf of Alaska (NOAA-AFSC 2026). Temporal coverage of the surveys varied per region with most surveys conducted annually (e.g., continental shelf surveys in the Bering Sea), or biennially (e.g., Gulf of Alaska) since 1999 (Hoff 2016; Siple et al. 2024; Markowitz et al. 2025; Dowlin et al. 2026). The continental slope survey in the Bering Sea stopped in 2016 (Markowitz et al. 2025). Surveys are conducted at fixed stations or following a stratified random survey design and covering depths from 0–1,000 m divided in multiple depth strata across 300–500 stations per region. In general, otter trawls of ~25 m headrope and ~34 m footrope were used and tows lasted between 15–30 minutes at a speed of ~3 knots. CPUE was estimated as the number of individuals/number of egg cases per square kilometre (no/km2) and the area swept (km2) as the linear distance towed, multiplied by the mean net width (Hoff 2016; Siple et al. 2024; Markowitz et al. 2025; Dowlin et al. 2026).

Between 2004–2024, the presence of Mud Skate egg cases was recorded in 90 tows during trawl surveys across the whole region surveyed, 12 (13.3%) of which were recorded inside this area in July 2012, 2014, and 2022 mostly at depths of 100–323 m (NOAA-AFSC 2026). The highest mean CPUE (mean = 110.2 egg cases/km2; 38.4–513.6) of Mud Skate egg cases was recorded in this area compared to the whole region surveyed (mean CPUE outside the area = 73.5 egg cases/km2; 23.0–1,032.1).

Amchitka & Tanaga Passes
