Santa Marta Cape ISRA

25/81

Santa Marta Cape ISRA

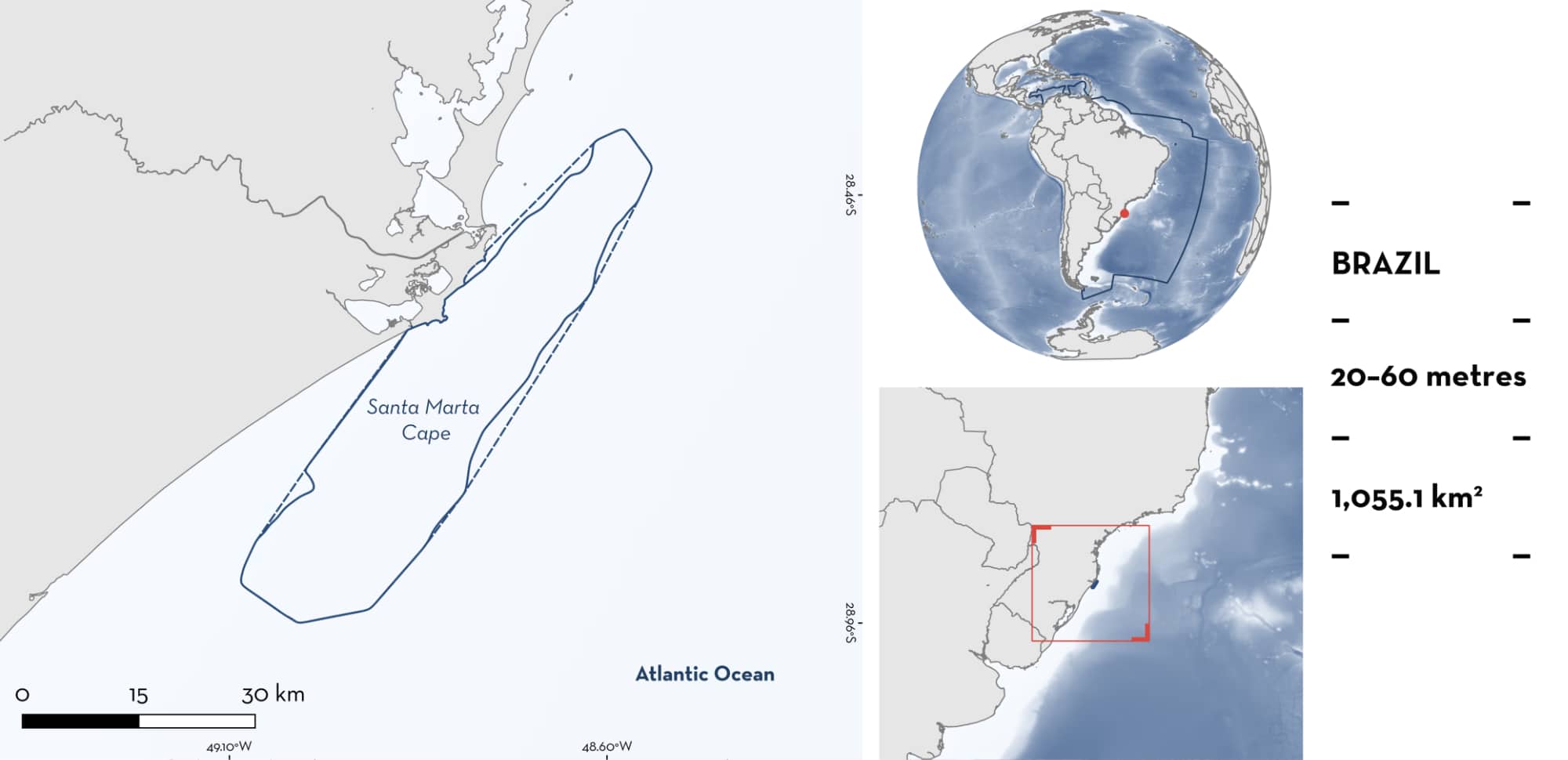

Santa Marta Cape

Summary

Santa Marta Cape is located in the Santa Catarina state of southern Brazil. This area is characterised by large expanses of fine sand and a gently sloping inner shelf which increases as it approaches the cape with incidence of moderate to high wave energy. Within this area there are: threatened species (e.g., Smallnose Fanskate Sympterygia bonapartii) and range-restricted species (e.g., Eyespot Skate Atlantoraja cyclophora).

Santa Marta Cape

Santa Marta Cape

DESCRIPTION OF HABITAT

Santa Marta Cape is located in Santa Catarina state, southern Brazil. This area is characterised by a large expanse of fine sand, and a gently sloping inner shelf which increases as it approaches the cape with an incidence of moderate to high wave energy (De Oliveira et al. 2016). The most energetic swells are from the south and southeast quadrants generating strong currents towards the northeast and occurring mainly during the austral autumn and winter. In the spring and summer, waves from the east and northeast quadrants prevail but do not produce a significant current due to the perpendicular wave approach to the coast (De Oliveira et al. 2016).

This Important Shark and Ray Area is benthic and subsurface and is delineated from 20 to 60 m based on the bathymetry of the area.

CRITERION A

VULNERABILITY

Two Qualifying Species considered threatened with extinction according to the IUCN Red List of Threatened Species regularly occur in the area. These are the Critically Endangered Bignose Fanskate (Pollom et al. 2020b) and the Endangered Eyespot Skate (Pollom et al. 2020a).

CRITERION B

RANGE RESTRICTED

This area holds the regular presence of the Eyespot Skate, Bignose Fanskate, and Smallnose Fanskate as resident range-restricted species. All species occur in the Patagonian Shelf and the South Brazil Shelf Large Marine Ecosystems.

Between 2022–2023, these species were regularly recorded by onboard observers on vessels from the commercial coastal pair trawl fleet operating along ~950 km of coastline including Santa Catarina and Rio Grande do Sul states (Monteiro DS, Cardoso LG, Fischer LG unpubl. data 2025). Of 324 sets monitored, 14 were within this area (33–55 m depth), in 2022 (June = 10) and 2023 (May = 3; November = 1) (DS Monteiro, LG Cardoso, LG Fischer unpubl. data 2025). Commercial pair trawl headrope and footrope lengths in south Brazil vary from 17.4–28.2 m and from 19.4–31.5 m, respectively. The mesh size ranges between 9–12 cm, measured from knot to knot (Queirolo et al. 2016). Data comprised the number of individuals and total kilograms per species in each pair trawl haul, and the total length (TL) was calculated based on the length-weight relationship using parameters for each species available on FishBase (Froese et al. 2013; Froese & Pauly 2024). All species were captured in higher numbers within this area compared to adjacent areas.

A total of 30 Eyespot Skate were captured in 36% (n = 5) of 14 hauls (outside this area it was captured in 23% out of 310). Individuals were captured in 2022 and 2023 (June and November) (DS Monteiro, LG Cardoso, LG Fischer unpubl. data 2025). The highest number of individuals per haul was 24 (average = 2.1 [average outside this area = 0.5]).

A total of 97 Bignose Fanskate were captured in 36% (n = 5) of 14 hauls (outside this area, it was captured in 16% [n = 49 hauls] out of 310). Individuals were captured in 2022 and 2023 (June and November) (DS Monteiro, LG Cardoso, LG Fischer unpubl. data 2025). The highest number of individuals per haul was 26 (average = 6.9 [average outside this area = 1.8]).

A total of 33 Smallnose Fanskate were captured in 36% (n = 5) of 14 hauls (outside this area, it was captured in 8.4% [n = 26 hauls]out of 310). Individuals were captured in 2022 and 2023 (June and November) (DS Monteiro, LG Cardoso, LG Fischer unpubl. data 2025). The highest number of individuals per haul was 11 (average = 2.4 [average outside this area = 0.8]).

Santa Marta Cape
